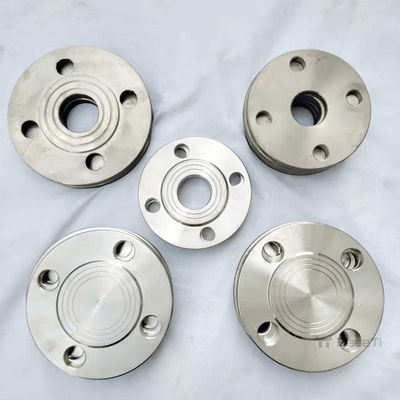

DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing
Product Details
| Place of Origin: | China |
| Brand Name: | BaseTi |
| Certification: | ISO9001:2015 |
| Model Number: | TGFL011 |
Payment & Shipping Terms
| Minimum Order Quantity: | NO MOQ LIMITATION. |
| Price: | CONTACT US |
| Packaging Details: | External: wooden box packaging; Inside: an inner packing with protective foam; |
| Delivery Time: | 12~20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 tons/month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | BaseTi |
|---|---|---|---|
| Certification | ISO9001:2015 | Model Number | TGFL011 |
| Grade: | Grade 1, Grade 2, Grade 5 (6Al-4V), Grade 7, Grade 9. | Production Standards: | ANSI B16.5, ASME B16.47, DIN 2566. |
| Tolerance: | +/- 0.02mm | Rolling Process: | Hot Rolled, Cold Rolled |
| Surface Process: | Pickling, Passivation, And Polishing | Size: | Common Sizes Include 1/2", 3/4", 1", 1.5", 2", And Larger, With Corresponding Nominal Pipe Sizes (NPS) |
| Minimum Order Quantity: | 1 | Delivery Time: | 15 DAYS |
| Certification: | ISO 9001, EN10204 3.1 | Pressure Rating: | Class 150, Class 300, And Class 600 |
| High Light: | DIN 2566 Titanium Pipe Flange,0.5in Titanium Pipe Flange,DIN 2566 titanium threaded flange |
||
Product Description
Titanium Threaded Flanges ANSI B16.5, ASME B16.47, DIN 2566. Ti For Oil & Gas, Chemical Processing
TITANIUM THREADED PIPE FLANGE - OVERVIEW
*If you have any requirements for customized titanium threaded flange, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
| Titanium threaded flange specifications & parameters | |
| Product name | Titanium flange piece |
| Application field | Oil & Gas, Chemical Processing, Desalination, Aerospace, Automotive. |
| Available size | 1/2" to 12" (Nominal Pipe Size) |
| Grade | Grade 1, Grade 2, Grade 5 (6Al-4V), Grade 7, Grade 9. |
| Production stadards | ANSI B16.5, ASME B16.47, DIN 2566. |
| Tolerance | ±0.02mm. or Customizable |
| Rolling process | Hot Rolling for larger sizes, Cold Rolling for smaller sizes. |
| Surface process | Pickling, Sandblasting, Polished. |
| Delivery time | 13-15days |
TITANIUM THREADED PIPE FLANGE APPLICATIONS & SOLUTIONS
1. Chemical Processing Industry
- Field: Chemical Industry
- Specific Scenario: Connecting pipes in corrosive chemical processing plants.
- Advantages & Problems Solved: Titanium threaded flanges, especially those made from titanium alloys, provide exceptional resistance to corrosion in aggressive chemical environments, ensuring long-term integrity and preventing leaks.
- Prominent Features: Excellent corrosion resistance, longevity.
2. Aerospace Manufacturing
- Field: Aerospace
- Specific Scenario: Assembly of aircraft components and systems.
- Advantages & Problems Solved: Titanium and titanium alloy threaded flanges offer a unique combination of lightweight design and high strength, making them suitable for aerospace applications where weight and performance are critical.
- Prominent Features: Lightweight, high strength-to-weight ratio.
3. Desalination Plants
- Field: Water Treatment
- Specific Scenario: High-pressure piping systems in reverse osmosis desalination facilities.
- Advantages & Problems Solved: Titanium threaded flanges resist corrosion from highly saline environments and can withstand the high pressures required for desalination processes, ensuring long-term reliability.
- Prominent Features: Corrosion resistance in saline environments, high-pressure tolerance.
4. Marine Industry
- Field: Maritime
- Specific Scenario: Use in seawater systems, such as saltwater pumps and pipelines.
- Advantages & Problems Solved: Titanium threaded flanges' exceptional corrosion resistance in seawater environments ensures the longevity of marine systems, preventing downtime and maintenance costs.
- Prominent Features: Seawater corrosion resistance, durability.
5. Power Generation
- Field: Energy
- Specific Scenario: Integration in nuclear power plants for coolant systems.
- Advantages & Problems Solved: Titanium threaded flanges' resistance to radiation and high-temperature environments makes them suitable for critical applications in nuclear power generation, ensuring safety and reliability.
- Prominent Features: Radiation resistance, high-temperature tolerance.
COMMON SPECIFICATIONS FOR TITANIUM THREADED FLANGES
Please note that the technical specifications provided here are general and commonly used. For specific customization and more detailed information, please feel free to contact BaseTi for further details.
| US Grade | European Grade | Standard | Sealing Surface Type | Convexity Technical Specification |
Ring Joint Face Technical Specification |
|---|---|---|---|---|---|
| Grade 2 | Titanium Gr. 2 | ASTM B16.5 | Raised Face | ASME B16.5 | ASME B16.5 |
| Grade 5 | Titanium Gr. 5 | ASME B16.5 | Ring Joint Face (RTJ) | ASME B16.5 | ASME B16.20 |
| Grade 9 | Titanium Gr. 9 | ASME B16.47 | Raised Face | ASME B16.5 | ASME B16.47 |
| Grade 23 | Titanium Gr. 23 | ASME B16.47 | Ring Joint Face (RTJ) | ASME B16.5 | ASME B16.20 |
