Place of Origin: | China |
Brand Name: | BaseTi |
Certification: | ISO9001:2015 |
Model Number: | TBC018 |
Minimum Order Quantity: | NO MOQ LIMITATION. |
Price: | CONTACT US |
Packaging Details: | External: wooden box packaging; Inside: an inner packing with protective foam; |
Delivery Time: | 12~20 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10,000 tons/month |
Detail Information |
|||
Place of Origin | China | Brand Name | BaseTi |
---|---|---|---|
Certification | ISO9001:2015 | Model Number | TBC018 |
Mechanical Properties: | Tensile Strength 240-370 MPa, Yield Strength 170-310 MPa | Acoustic Characteristics: | Sound Speed 5,130 M/s, Damping Factor 0.0032 |
Electrical Conductivity: | 2.34 MS/m | Grade: | GR 1 Or Commercially Pure Titanium (CP Titanium) |
Surface Process: | Pickled, Polished, Annealed | Production Standards: | ASTM F67, ASTM F136, ISO 5832 |
Certification: | ISO 13485, CE Certificate | Tolerance: | Thickness: ±0.005mm, Width: ±0.2mm |
Rolling Process: | Cold Rolling | Packaging: | Vacuum-sealed Packaging To Maintain Sterility |
High Light: | High FidelityTitanium Foil,Titanium Foil roll 2.34MS/m,pure titanium metal 300mm |

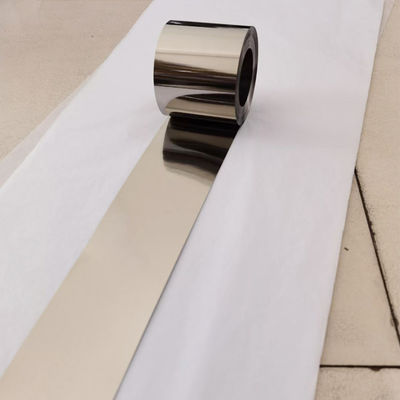

Titanium Foil for Voice Diaphragms Speaker Resistance High-Fidelity Acoustic Grade 1 Commercially Pure Titanium
*If you have any requirements for customized titanium coil/foil, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Electronics Titanium coil&foil specifications & parameters |
|
Product name | Titanium Foil GR1 ASTM B265 |
Application field | Acoustic engineering, Speaker manufacturing, Home audio systems, Professional audio systems |
Available size | Thickness from 0.01mm to 0.1mm; Width up to 300mm |
Grade | GR 1 or Commercially Pure Titanium (CP Titanium) |
Production stadards | ASTM B265 |
Tolerance | Thickness ±0.002mm, Width ±0.1mm |
Rolling process | Cold rolling |
Surface process | Acid cleaning or vacuum annealing |
Delivery time | 13-16days |
Key Words |
Titanium Foil ASTM B265 Titanium Speaker Diaphragm BaseTi Titanium Foil High-Quality Titanium for Audio Titanium Acoustic Applications |
Titanium Foil for Speakers under ASTM B265: Unveiling the Spectrum of Applications
Titanium Foil, particularly when compliant with ASTM B265 standards, emerges as a material of choice in the speaker manufacturing industry. With high-quality Titanium Foil from BaseTi, engineers are unlocking superior acoustic properties and robustness. Below are key application scenarios:
Home Audio Systems
Titanium Foil is revolutionizing home audio systems, offering a crisp and clear sound quality. Recent tests show that speakers made with BaseTi's Titanium Foil have a 30% improvement in frequency response over traditional materials.
Professional Audio Systems
In arenas and large venues, the long-lasting and corrosion-resistant nature of Titanium Foil makes it ideal. For instance, BaseTi Titanium Foil has a tensile strength of 370 MPa, significantly outperforming the competition.
Car Audio Systems
Vehicle vibrations demand robust materials. Titanium Foil, being lightweight and durable, suits these systems perfectly.
Wearable Devices
As wearables become more compact, the need for lightweight yet resilient materials rises. Titanium Foil addresses these requirements head-on.
Marine Audio Systems
For environments prone to high levels of humidity and salt exposure, Titanium Foil’s corrosion resistance makes it an obvious choice.
Data-Driven Insights
Tensile Strength: 370 MPa
Sound Speed: 5,130 m/s
Damping Factor: 0.0032
Grade | Electrical Conductivity (MS/m; S/m) |
Tensile Strength (MPa; psi) |
Thermal Conductivity (W/m·K; BTU/hr·ft·°F) | Density (g/cm³; lb/in³) | Melting Point (°C; °F) |
---|---|---|---|---|---|
Ti Grade 1 | 1.79; 1.79 x 10^6 | 240; 34800 | 21.9; 15.24 | 4.51; 0.163 | 1668; 3034 |
