65000psi Titanium Pipe Fittings Titanium Tube Fitting Adapters ASME B16.9 For Petrochemical
| Place of Origin: | China |
| Brand Name: | BaseTi |
| Certification: | ISO9001:2015 |
| Model Number: | PF020 |
| Minimum Order Quantity: | NO MOQ LIMITATION. |
| Price: | CONTACT US |
| Packaging Details: | External: wooden box packaging; Inside: an inner packing with protective foam; |
| Delivery Time: | 10~15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 tons/month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | BaseTi |
|---|---|---|---|
| Certification | ISO9001:2015 | Model Number | PF020 |
| Grade: | USA (Grade 2, Grade 5), Europe (3.7035, 3.7165) | Production Standards: | USA (ASME B16.9), Europe (EN 10253) |
| Corrosion Resistance: | High | Mechanical Strength: | 40,000-65,000 Psi |
| Temperature Resistance: | -60 To 540°C | Pressure Rating: | 150-2500 Lbs |
| Dimensional Accuracy: | ±0.02 Mm | Surface Finish: | Pickled, Polished |
| Connection Type: | Threaded, Welded | Biocompatibility: | Excellent |
| High Light: | 65000psi Titanium Pipe Fittings,Titanium Pipe Fittings ISO ASME B16.9,titanium tube adapters For Petrochemical |
||
Product Description

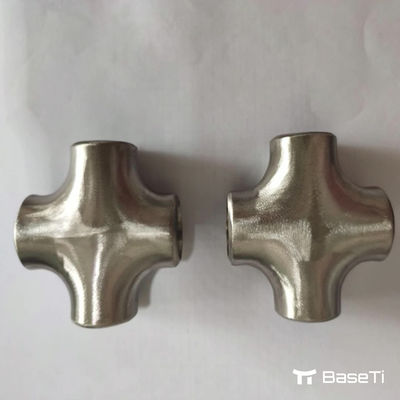

Titanium 4-Way Fitting Cross Tee Fitting Titanium Pipe Fittings ASME B16.9 For Petrochemical, Aerospace, Medical, Marine
*If you have any requirements for customized Titanium 4-way fitting, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 4 to 7 days.
Titanium pipe fittings specifications & parameters |
|
|
Product name |
Titanium 4-way fitting of titanium pipe fittings |
|
Application field |
Petrochemical, Aerospace, Medical, Marine |
|
Available size |
1/2" to 24" (U.S.), DN15 to DN600 (EU) or customized size |
|
Material Grade |
USA (Grade 2, Grade 5), Europe (3.7035, 3.7165) |
|
Production stadards |
USA (ASME B16.9), Europe (EN 10253) |
|
Corrosion Resistance |
High |
|
Mechanical Strength |
40,000-65,000 psi |
|
Temperature Resistance |
-60 to 540°C |
|
Dimensional Accuracy |
±0.02 mm |
|
Surface Finish |
Pickled, Polished |
|
Connection Type |
Welded, threaded, flanged |
|
Biocompatibility |
Excellent |
|
Weldability |
Good |
| Key words | Titanium fittings Titanium pipe Titanium flange Titanium elbow Corrosion resistance High strength titanium Titanium alloy Titanium fabrication ASME B16.9 |
Titanium 4-way fittings are quintessential components in various industries, including aerospace, marine, petrochemical, and medical applications. Offering unparalleled mechanical strength and corrosion resistance, these fittings are increasingly replacing traditional materials. Let's delve deep into how the USA and European material grades—specifically Grade 2, Grade 5, 3.7035, and 3.7165—provide robust solutions for diverse applications.
- USA Grades: Grade 2 & Grade 5
Grade 2 Titanium Fittings
Grade 2 Titanium is commercially pure and offers moderate strength with excellent corrosion resistance and weldability. With a tensile strength of approximately 50,000 psi, Grade 2 titanium 4-way fittings are commonly used in chemical processing and desalination plants.
Application:
Petrochemical Industry: Corrosion resistance makes Grade 2 ideal for aggressive environments.
Biocompatibility: Excellent for medical applications, ensuring safety and longevity.
Grade 5 Titanium Fittings
Also known as Ti 6Al-4V, Grade 5 Titanium offers superior mechanical strength, clocking in at 130,000-150,000 psi tensile strength. These characteristics make it highly desirable in aerospace and marine applications.
Application:
Aerospace: High strength-to-weight ratio suits aerospace applications.
Marine Industry: Exceptional resistance to saltwater corrosion.
- European Grades: 3.7035 & 3.7165
3.7035 Titanium Fittings
Similar to Grade 2 in the USA, 3.7035 offers moderate strength and excellent corrosion resistance, making it ideal for petrochemical and marine applications.
Application:
Chemical Processing: Highly resistant to corrosive substances.
Marine Engineering: Ideal for underwater installations.
3.7165 Titanium Fittings
Equivalent to Grade 5, 3.7165 offers high tensile strength and excellent biocompatibility, making it optimal for aerospace and medical implants.
Application:
Medical Implants: The high strength and biocompatibility make it a go-to material.
High-Performance Vehicles: Used in race cars and naval ships for its lightweight properties.
- Why Choose BaseTi?
When it comes to titanium pipe fittings, choosing the right titanium factory or titanium manufacturer is critical. BaseTi not only stands as a reputable titanium supplier but also offers a wide array of high-quality fittings across both USA and European grades.
Whether you're in aerospace, petrochemical, or medical sectors, the right grade of titanium 4-way fittings can be a game-changer. Make sure to consult with a trusted titanium supplier like BaseTi to fulfill your specific needs.
Here's a comprehensive table detailing the applications, standards, and specific products available for Titanium 4-way fittings in different material grades from the USA and Europe:
| Grade | Application Field | Production Standard |
Specific Products |
|---|---|---|---|
| USA Grade 2 | Petrochemical, Desalination, Medical | ASME B16.9 | Grade 2 Titanium 4-Way Cross, Equal Cross |
| USA Grade 5 | Aerospace, Marine | ASME B16.9 | Grade 5 Titanium 4-Way Cross, Reducing Tee |
| Europe 3.7035 | Petrochemical, Marine | EN 10253 | EN 3.7035 Titanium 4-Way Cross, Equal Cross |
| Europe 3.7165 | Aerospace, Medical Implants | EN 10253 | EN 3.7165 Titanium 4-Way Cross, Reducing Tee |
USA Grade 2
Application: Ideal for chemical processing plants due to its excellent corrosion resistance. Also finds applications in desalination systems and medical sectors.
Standard: The production standard typically followed is ASME B16.9.
Products: Commonly available products include Grade 2 Titanium 4-Way Cross and Equal Cross fittings.
USA Grade 5
Application: Dominates in aerospace for its high strength-to-weight ratio and in marine environments due to its exceptional corrosion resistance.
Standard: Manufactured as per ASME B16.9 standard.
Products: Grade 5 Titanium 4-Way Cross and Reducing Tee are popular choices.
Europe 3.7035
Application: Similar to USA Grade 2, it is suited for petrochemical and marine applications.
Standard: The main production standard is EN 10253.
Products: EN 3.7035 Titanium 4-Way Cross and Equal Cross are readily available.
Europe 3.7165
Application: High strength makes it excellent for aerospace, while its biocompatibility makes it suitable for medical implants.
Standard: Produced according to EN 10253.
Products: EN 3.7165 Titanium 4-Way Cross and Reducing Tee are in high demand.
By choosing the appropriate grade and standard for your specific needs, you're well on your way to maximizing the benefits of Titanium 4-way fittings in your projects.
|
Grade |
Density (g/cm³) |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
Thermal Conductivity (W/m·K) |
|---|---|---|---|---|---|
|
USA Grade 2 |
4.51 |
345 |
275 |
20 |
22 |
|
USA Grade 5 |
4.43 |
950 |
880 |
14 |
7.5 |
|
Europe 3.7035 |
4.51 |
345 |
275 |
20 |
22 |
|
Europe 3.7165 |
4.43 |
950 |
880 |
14 |
7.5 |
USA Grade 2 and Europe 3.7035
-
Density: Light-weight feature enables it for weight-sensitive applications.
-
Tensile Strength: Highly durable for industrial applications.
-
Thermal Conductivity: Suitable for moderate-temperature applications.
USA Grade 5 and Europe 3.7165
-
Density: Higher strength-to-weight ratio makes it ideal for aerospace.
-
Tensile Strength: Remarkable tensile strength for high-stress environments.
-
Thermal Conductivity: Lower thermal conductivity makes it ideal for insulating applications.
Here is an Excel table layout that focuses on the chemical composition:
|
Grade |
C (%) |
O (%) |
N (%) |
H (%) |
Al (%) |
V (%) |
|---|---|---|---|---|---|---|
|
USA Grade 2 |
0.1 |
0.25 |
0.03 |
0.015 |
-- |
-- |
|
USA Grade 5 |
0.1 |
0.2 |
0.05 |
0.015 |
5.5-6.8 |
3.5-4.5 |
|
Europe 3.7035 |
0.1 |
0.25 |
0.03 |
0.015 |
-- |
-- |
|
Europe 3.7165 |
0.1 |
0.2 |
0.05 |
0.015 |
5.5-6.8 |
3.5-4.5 |
USA Grade 2 and Europe 3.7035
-
C, O, N, H: General low percentages indicate high corrosion resistance.
USA Grade 5 and Europe 3.7165
-
Al, V: The presence of these elements contributes to increased strength.
