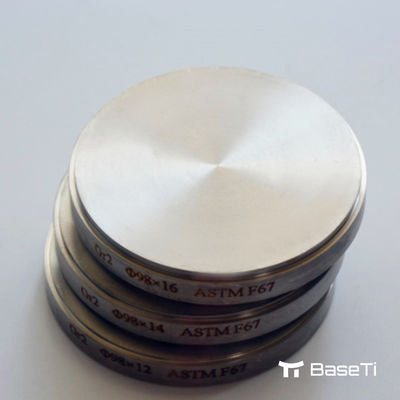

Orthopedic Titanium Disk ASTM F136 F67 Medical Titanium Alloy Disc For Bone Fixations

Product Details
Place of Origin: China
Brand Name: BaseTi
Certification: ISO9001:2015
Model Number: TYP015
Payment & Shipping Terms
Minimum Order Quantity: NO MOQ LIMITATION.
Price: CONTACT US
Packaging Details: External: wooden box packaging; Inside: an inner packing with protective foam;
Delivery Time: 12~20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10,000 tons/month

Detail Information

Place of Origin China Brand Name BaseTi
Certification ISO9001:2015 Model Number TYP015
Application Field: Orthopedic Implants, Joint Replacements, Bone Fixations, Spinal Fusion Devices USA Material Grade: ASTM F136, ASTM F67
USA Production Standards: ASTM (American Society For Testing And Materials) Ti Disc Tolerance: ±0.025 Mm
Europe Material Grade: EN ISO 5832-3, EN ISO 5832-2 Europe Production Standards: EN (European Standards)
Mechanical Strength: High (suited For Load-bearing Implants) Corrosion Resistance: Excellent (resistant To Body Fluids)
High Light:

Orthopedic titanium disk

,

titanium disk ASTM F136

,

titanium astm f 136 F67

Product Description

Orthopedic Titanium Disc ASTM F136 F67 Medical Titanium Alloy disc for Joint Replacements, Bone Fixations, Spinal Fusion





ASMT F136 F67 Orthopedic Titanium Disc - Instock NOW
BaseTi - Orthopedics Pure Titanium Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 2
ASTM Grade 3
Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85

BaseTi - Orthopedics Titanium Alloy Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 5
Ti-6Al-4V
Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85

*The dimensions listed in the table above represent the sizes we regularly supply, and we have ample stock available.

*Should you require customized dimensions for your titanium discs, or specific tolerance parameters, we are able to complete production within a swift timeframe of 10 to 15 days.





ASMT F136 F67  Orthopedic Titanium Disc - Applications

Optimized Solutions with Orthopedic Titanium Discs: A Deep Dive


Orthopedic surgery has seen groundbreaking advancements with the introduction of cutting-edge materials, among which the Orthopedic titanium disc stands out. Ensuring durability, strength, and biocompatibility, these discs have become an industry standard for numerous surgical applications.


Diving deeper, the Orthopedic titanium disc, adhering to international production standards such as USA's ASTM F136 and ASTM F67, and Europe's EN ISO 5832-3 and EN ISO 5832-2, exhibits an impressive profile of reliability and performance.




Real-World Applications

  • Orthopedic Implants: Titanium, with its blend of strength and lightweight nature, has made implants more enduring. The discs are tailored to facilitate bone ingrowth, leading to more stable and long-lasting implant solutions.



  • Joint Replacements: Especially in the realm of hip and knee replacements, the Orthopedic titanium disc shines. With the body's high acceptance rate of titanium, replacements feel more natural and less prone to complications.



  • Bone Fixations: Broken or fractured bones? The adaptability and strength of titanium discs play a crucial role in bone fixations, ensuring quicker recovery and minimal post-surgical complications.



  • Spinal Fusion Devices: As the backbone of our body, the spine requires top-notch materials for any surgical interventions. Titanium discs, known for their biocompatibility and resilience, are the go-to choice for spinal surgeries.




Produced by some of the leading titanium manufacturers and suppliers, including BaseTi, these discs are synonymous with quality and precision. They are fabricated in state-of-the-art titanium factories, ensuring each disc's specification meets the stringent medical standards.


In a rapidly evolving medical landscape, it's pivotal to trust materials that are backed by science and real-world results. The Orthopedic titanium disc, with its proven track record, is setting the gold standard in orthopedic surgeries worldwide.




Orthopedic Titanium Disk ASTM F136 F67 Medical Titanium Alloy Disc For Bone Fixations 0



Physical Properties of Orthopedic Titanium Disc

If you're in the medical field, particularly involved in orthopedic applications, it's crucial to understand the physical properties of the titanium discs you're using. To give you a thorough understanding, let's delve into a comprehensive table detailing the physical properties of Orthopedic Titanium Discs following the standards USA: ASTM F136, ASTM F67 and Europe: EN ISO 5832-3, EN ISO 5832-2.



Standard

Grade

Tensile Strength (MPa)

Yield Strength (MPa)

Elongation (%)

Hardness (HRC)

ASTM F136

ELI

860-1150

795-1100

10-25

30-36

ASTM F67

Gr 2

345-450

275-400

20-35

20-28

EN ISO 5832-3

Ti-6Al-4V

900-1150

830-1100

8-15

32-38

EN ISO 5832-2

Ti (Pure)

240-370

170-310

22-35

10-20





Chemical Properties of Orthopedic Titanium Disc

Understanding the chemical properties of orthopedic titanium discs is equally vital for ensuring safety and efficacy in medical applications. Here's a concise table that enumerates these properties:



Standard

Grade

C

O

N

Fe

Al

V

ASTM F136

ELI

0.08

0.13

0.03

0.25

5.5-6.5

3.5-4.5

ASTM F67

Gr 2

0.1

0.35

0.03

0.3

-

-

EN ISO 5832-3

Ti-6Al-4V

0.08

0.2

0.05

0.3

5.5-6.75

3.5-4.5

EN ISO 5832-2

Ti (Pure)

0.08

0.2

0.03

0.2

-

-
