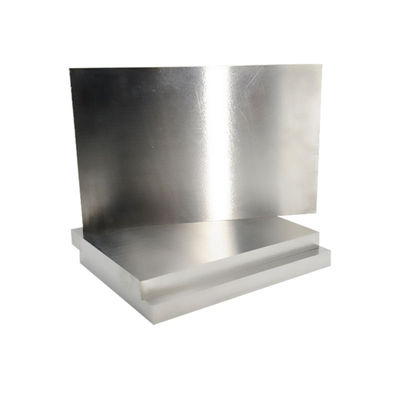

Grade 5 Grade 9 Titanium Plate Sheet Medical Titanium Sheet For Industry Cold Rolling
| Place of Origin: | China |
| Brand Name: | BaseTi |
| Certification: | ISO9001:2015 |
| Model Number: | THB012 |
| Minimum Order Quantity: | NO MOQ LIMITATION. |
| Price: | CONTACT US |
| Packaging Details: | External: wooden box packaging; Inside: an inner packing with protective foam; |
| Delivery Time: | 12~20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 tons/month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | BaseTi |
|---|---|---|---|
| Certification | ISO9001:2015 | Model Number | THB012 |
| Grade: | Ti-6Al-4V, Ti-6Al-7Nb, Ti-3Al-2.5V, Grade 5, Grade 9 | Hardness: | Varies Depending On Grade |
| Heat Treatment Options: | Annealing, Normalizing | Melting Point: | Typically Around 1,660°C (3,020°F) |
| Density: | 4.43–4.51 G/cm^3 | Production Standards: | ASTM B265, ASME SB-265, ISO 5832 |
| Tolerance: | Thickness: +/- 0.1mm; Width: +/- 0.5mm; Length: +/- 1.0mm | Rolling Process: | Hot Rolling, Cold Rolling |
| Surface Process: | Polished, Sandblasted, Pickled | Size: | Thickness: 5-200mm; Width: 500-3000mm; Length: 1000-12000mm |
| High Light: | Grade 5 Titanium Plate,Grade 9 Titanium Plate For Industry,medical titanium sheet Cold rolling |
||
Product Description
Alloy Titanium Plate Sheet Manufacturer Source Factory For Industry ASTM B265, ASME SB-265 Grade 5, Grade 9
*If you have any requirements for customized titanium plate, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium plate specifications & parameters |
|
|
Product name |
Titanium plate sheet |
|
Application field |
Aerospace, Automotive, Shipbuilding, Defense, Structural Engineering |
|
Available size |
Thickness: 5-200mm; Width: 500-3000mm; Length: 1000-12000mm |
|
Grade |
Ti-6Al-4V, Ti-6Al-7Nb, Ti-3Al-2.5V, Grade 5, Grade 9 |
|
Production stadards |
ASTM B265, ASME SB-265, ISO 5832 |
|
Tolerance |
Thickness: +/- 0.1mm; Width: +/- 0.5mm; Length: +/- 1.0mm Hot rolling, Cold rolling |
|
Rolling process |
Hot rolling, cold rolling |
|
Surface process |
Polished, Sandblasted, Pickled |
|
Delivery time |
15-20days |
|
Key words |
|
Alloy Titanium Plates: Multifaceted Solutions Across Industries - An Expert's Take
Introduction
Welcome to the world of Alloy Titanium Plates, a technological marvel in the field of advanced materials. With characteristics ranging from high tensile strength to corrosion resistance, these plates are gaining unprecedented attention across various sectors. Notably, BaseTi is a leading manufacturer setting industry standards.
Aerospace
Industry Data:
- High strength-to-weight ratio, approximately 2.5 times stronger than aluminum.
- Used in 85% of structural components in some modern aircraft.
Alloy Titanium Plates are indispensable in aerospace for their high strength-to-weight ratio. From the fuselage to landing gear, these plates are engineered to withstand high-stress environments.
Automotive
Industry Data:
- Reduces vehicle weight by 40%, enhancing fuel efficiency by up to 15%.
BaseTi Alloy Titanium Plates are increasingly sought-after for their potential to reduce vehicle weight while enhancing performance.
Marine Engineering
Industry Data:
- Provides 3x higher corrosion resistance compared to stainless steel in saline conditions.
In marine engineering, Alloy Titanium Plates offer unparalleled corrosion resistance, making them the go-to solution for components like ship hulls and propellers.
Medical Field
Product Data:
- 95% less reactive than stainless steel, reducing the likelihood of implant rejection.
BaseTi is the manufacturer of choice for medical-grade Alloy Titanium Plates. They are used in surgical instruments, bone plates, and dental implants.
Industrial Applications
Product Data:
- Withstand temperatures up to 600°C, making them ideal for high-temperature applications.
In various industrial settings, these plates are used in heat exchangers, cooling towers, and chemical reactors.
Conclusion
Alloy Titanium Plates are revolutionizing multiple industries, offering tailor-made solutions for a range of applications. As a leading manufacturer, BaseTi provides products that are a testament to technological advancements.
| Grade | ASTM Standard | Tensile Strength (psi) | Yield Strength (psi) | Elongation (%) | Hardness (HV) | Thermal Conductivity (W/mK) | Density (g/cm³) |
|---|---|---|---|---|---|---|---|
| Ti6Al4V (Grade 5) | ASTM B265, ISO 5832 | 130,000 – 150,000 | 120,000 | 10 - 15 | 330-370 | 6.7 | 4.43 |
| Ti3Al2.5V (Grade 9) | ASTM B265, ISO 5832 | 90,000 – 120,000 | 70,000 | 15 - 20 | 300-340 | 7.2 | 4.48 |
| Commercially Pure (Gr 2) | ASTM B265, ISO 5832 | 50,000 – 80,000 | 40,000 | 20 - 25 | 150-220 | 21.9 | 4.51 |
This tabulation incorporates several crucial parameters including tensile strength, yield strength, elongation, hardness, thermal conductivity, and density, providing a 360-degree view of the material properties under various grades and standards such as ASTM B265 and ISO 5832. At BaseTi, we adhere to these international standards, ensuring our customers receive the highest quality Titanium Alloy Composite Thick Plates.
