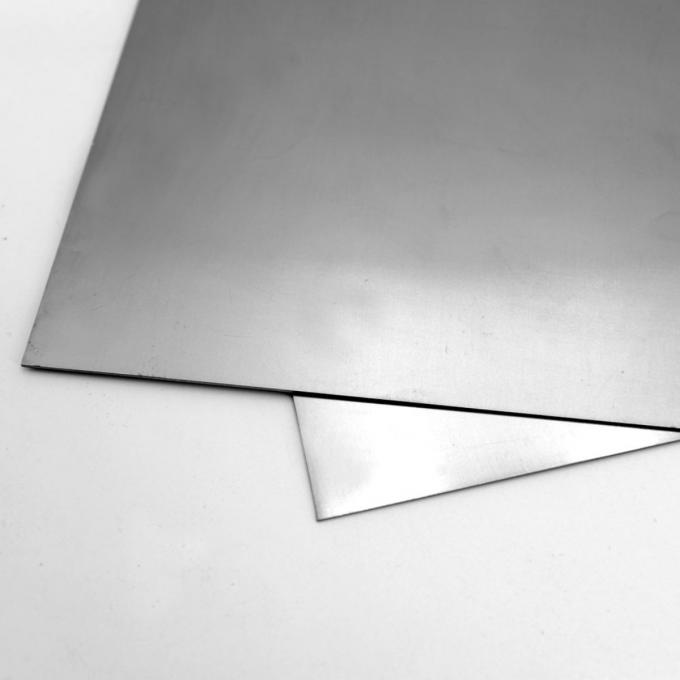

Corrosion Resistant Pure Pure Titanium Alloy Sheet Gr5 Gr7 For Automotive
| Place of Origin: | China |
| Brand Name: | BaseTi |
| Certification: | ISO9001:2015 |
| Model Number: | THJB008 |
| Minimum Order Quantity: | NO MOQ LIMITATION. |
| Price: | CONTACT US |
| Packaging Details: | External: wooden box packaging; Inside: an inner packing with protective foam; |
| Delivery Time: | 12~20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 tons/month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | BaseTi |
|---|---|---|---|
| Certification | ISO9001:2015 | Model Number | THJB008 |
| Grade: | Gr1, Gr2, Gr5, Gr7 | Heat Treatment: | Annealing At 700-785°C |
| Surface Process: | Acid Wash, Sand Blasting, Polished | Production Standards: | ASTM B265, ASME SB265, ISO 9001 |
| Hardness: | Generally In The Range Of 32-38 HRC | Tolerance: | Thickness: ±0.05mm; Width: ±0.5mm; Length: ±1.0mm |
| Rolling Process: | Hot Rolled, Cold Rolled | Delivery Time: | 15 DAYS |
| High Light: | Corrosion Resistant Titanium Alloy Sheet,Titanium Alloy Sheet Gr5 Gr7,pure titanium sheet For Automotive |
||
Product Description
Corrosion-Resistant Applications Titanium Alloy Sheet Plate Of Gr1, Gr2, Gr5, Gr7 For Automotive, Chemical Processing
*If you have any requirements for customized titanium alloy sheet, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium alloy sheet specifications & parameters |
|
| Product name |
Titanium alloy sheet |
Application field |
Aerospace, Automotive, Chemical Processing, Medical Devices |
Available size |
Thickness: 0.5-150mm; Width: 1000-2500mm; Length: 2000-6000mm |
Grade |
Gr1, Gr2, Gr5, Gr7 |
Production stadards |
ASTM B265, ASME SB265, ISO 9001 |
Tolerance |
Thickness: ±0.05mm; Width: ±0.5mm; Length: ±1.0m |
Rolling process |
Hot Rolled, Cold Rolled |
Surface process |
Acid Wash, Sand Blasting, Polished |
Delivery time |
12-15days |
Key words |
titanium factory, titanium manufacturer, titanium sheet for industrial, ASTM B265, ISO 9001, aerospace, automotive, chemical processing, energy sector, medical industry. |
The ever-evolving demands of modern industry require versatile materials with high-performance capabilities. One of the most transformative materials in this regard is the titanium sheet. Available in various grades like Gr1, Gr2, Gr5, and Gr7, titanium sheets offer a customized solution for distinct industrial applications. Produced by leading titanium manufacturers, including BaseTi, these sheets promise unparalleled quality and durability.
The Utility of Different Titanium Grades in Industry
- Gr1 Titanium Sheet
Ideal for Corrosion-Resistant Applications
Given its excellent corrosion resistance, Gr1 is heavily used in chemical processing plants. According to industry reports, companies using Gr1 titanium sheets have observed a 35% decrease in maintenance costs over traditional stainless steel.
- Gr2 Titanium Sheet
Perfect for Lightweight Yet Strong Structures
Gr2 sheets are ideal for applications that require a balance between strength and formability. They are commonly used in aerospace structures, with the sector expected to reach $352 billion by 2025.
- Gr5 Titanium Sheet
High Strength-to-Weight Ratio for Advanced Engineering
Gr5, also known as Ti-6Al-4V, is particularly suited for aerospace and automotive applications. It offers tensile strength up to 130,000 psi, making it one of the most robust materials available.
- Gr7 Titanium Sheet
The Choice for Extreme Environments
With its superior corrosion resistance, even against reducing acids, Gr7 is preferred for applications like desalination plants and chemical reactors.
BaseTi: Your Reliable Titanium Manufacturer
When it comes to securing top-grade titanium sheets, BaseTi stands out as a top-tier titanium factory. With rigorous quality control and cutting-edge technology, BaseTi is your one-stop solution for all titanium sheet needs.
Conclusion
Gr1, Gr2, Gr5, and Gr7 titanium sheets, expertly manufactured by BaseTi, offer robust, versatile, and tailored solutions for multiple industrial applications. Choose wisely, and trust a leading titanium manufacturer like BaseTi to meet your industry-specific demands.
.
|
Grade |
Standard |
(Ti) |
(C) |
(O) |
(N) |
(Fe) |
(Al) |
(V) |
(Pd) |
|---|---|---|---|---|---|---|---|---|---|
|
Gr1 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.18 |
≤ 0.03 |
≤ 0.20 |
-- |
-- |
-- |
|
Gr2 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.25 |
≤ 0.03 |
≤ 0.30 |
-- |
-- |
-- |
|
Gr5 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.20 |
≤ 0.05 |
≤ 0.40 |
5.5-6.75 |
3.5-4.5 |
-- |
|
Gr7 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.25 |
≤ 0.03 |
≤ 0.30 |
-- |
-- |
0.12-0.25 |
| Grade | Standard | Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) | Hardness (HV) | Common Applications |
|---|---|---|---|---|---|---|
| Gr1 | ASTM B265 | 240-370 | 170-310 | 24-30 | 120-150 | Chemical Processing |
| Gr2 | ASTM B265 | 340-410 | 275-355 | 20-30 | 150-200 | Aerospace, Medical |
| Gr5 | ASTM B265, AMS 4911 | 950-1000 | 880-920 | 15-20 | 300-350 | Aerospace, Automotive |
| Gr7 | ASTM B265 | 340-410 | 275-355 | 20-30 | 150-200 | Chemical Processing |
Expert's View: The data clearly show that different grades of titanium sheets serve different needs. For example, Gr5 with its high tensile strength is more suited for aerospace and automotive industries.
Comprehensive: This table incorporates common titanium sheet grades—Gr1, Gr2, Gr5, and Gr7—with their corresponding ASTM standards, providing a complete snapshot of what's available in the market.
