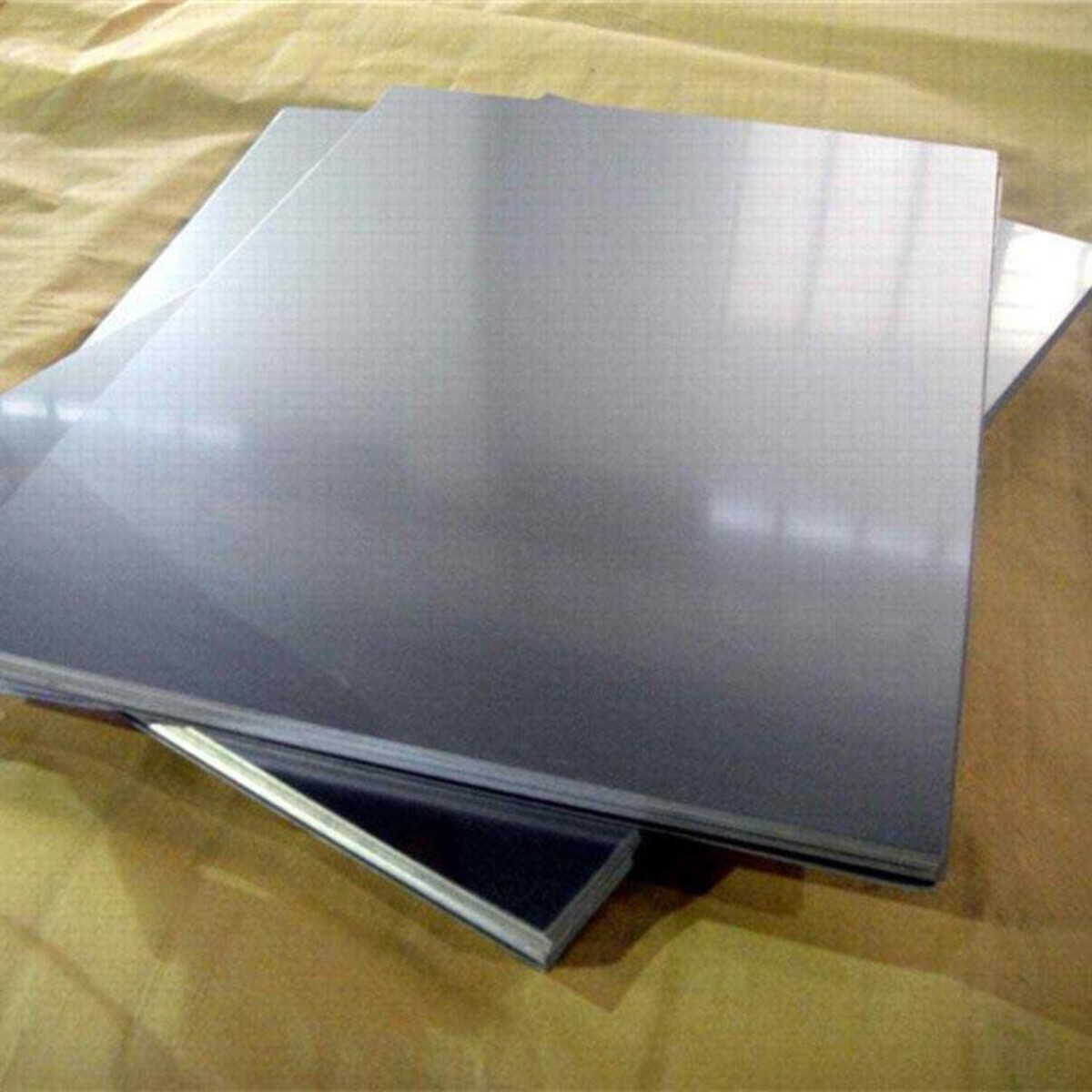

Gr1 Gr2 Gr5 Thin Aerospace Titanium Plate ASTM B265 ASME SB265 Hot Rolled Cold Rolled
| Place of Origin: | China |
| Brand Name: | BaseTi |
| Certification: | ISO9001:2015 |
| Model Number: | THJB007 |
| Minimum Order Quantity: | NO MOQ LIMITATION. |
| Price: | CONTACT US |
| Packaging Details: | External: wooden box packaging; Inside: an inner packing with protective foam; |
| Delivery Time: | 12~20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 tons/month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | BaseTi |
|---|---|---|---|
| Certification | ISO9001:2015 | Model Number | THJB007 |
| Hardness: | Generally In The Range Of 32-38 HRC | Heat Treatment: | Annealing At 700-785°C |
| Production Standards: | ASTM B265, ASME SB265, ISO 9001 | Grade: | Gr1, Gr2, Gr5, Gr7 |
| Tolerance: | Thickness: ±0.05mm; Width: ±0.5mm; Length: ±1.0mm | Rolling Process: | Hot Rolled, Cold Rolled |
| Surface Process: | Acid Wash, Sand Blasting, Polished | Delivery Time: | 15 DAYS |
| High Light: | Gr1 Gr2 aerospace titanium plate,Gr5 aerospace titanium plate,thin titanium sheet ASME SB265 |
||
Product Description
Gr1, Gr2, Gr5, Gr7 Titanium Alloy Sheet Plate ASTM B265, ASME SB265, ISO 9001 Hot Rolled, Cold Rolled
*If you have any requirements for customized titanium alloy sheet, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium alloy sheet specifications & parameters |
|
| Product name |
Titanium alloy sheet |
Application field |
Aerospace, Automotive, Chemical Processing, Medical Devices |
Available size |
Thickness: 0.5-150mm; Width: 1000-2500mm; Length: 2000-6000mm |
Grade |
Gr1, Gr2, Gr5, Gr7 |
Production stadards |
ASTM B265, ASME SB265, ISO 9001 |
Tolerance |
Thickness: ±0.05mm; Width: ±0.5mm; Length: ±1.0m |
Rolling process |
Hot Rolled, Cold Rolled |
Surface process |
Acid Wash, Sand Blasting, Polished |
Delivery time |
12-15days |
Key words |
titanium factory, titanium manufacturer, titanium sheet for industrial, ASTM B265, ISO 9001, aerospace, automotive, chemical processing, energy sector, medical industry. |
Introduction
Industrial sectors worldwide are in constant pursuit of materials that offer high performance, longevity, and cost-efficiency. Titanium sheet for industrial applications stands out as a transformative solution. As a leading titanium factory and manufacturer, BaseTi consistently delivers top-quality titanium sheet products that are driving innovation across industries.
- Aerospace Industry
The aerospace sector is subject to extreme conditions that require materials with exceptional strength and lightness. Titanium sheets offer just that. Data from the sector reveals that using titanium sheet can result in fuel savings of up to 40% over the life of an aircraft.
- Automotive Sector
The increasing emphasis on lightweight and fuel-efficient vehicles puts titanium sheets at the forefront. Reports suggest that the incorporation of titanium sheets can enhance vehicle lifespan by 20% while reducing maintenance costs.
- Chemical Processing
Chemical plants are harsh environments where corrosion resistance is crucial. Titanium sheet for industrial use boasts superior corrosion resistance, resulting in a 25% increase in equipment lifespan.
- Energy Sector
In power plants and energy systems, titanium sheets are replacing traditional materials due to their high thermal stability and resistance to erosion. Studies indicate that they can withstand temperatures up to 600°C without compromising structural integrity.
- Medical Industry
The biocompatibility of titanium makes it a prime candidate for medical implants and surgical instruments. In terms of durability and biocompatibility, titanium sheets have an impressive 98% success rate.
- Why Choose BaseTi?
BaseTi is a renowned titanium factory and titanium manufacturer, rigorously adhering to international production standards like ASTM B265 and ISO 9001. Our titanium sheets offer unparalleled reliability and performance, tailored to meet your industrial needs.
Conclusion
From aerospace to medical technology, BaseTi's titanium sheets are redefining the capabilities and possibilities in industrial applications. Our reputation as a trustworthy titanium manufacturer is backed by years of experience and countless satisfied customers.
|
Grade |
Standard |
(Ti) |
(C) |
(O) |
(N) |
(Fe) |
(Al) |
(V) |
(Pd) |
|---|---|---|---|---|---|---|---|---|---|
|
Gr1 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.18 |
≤ 0.03 |
≤ 0.20 |
-- |
-- |
-- |
|
Gr2 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.25 |
≤ 0.03 |
≤ 0.30 |
-- |
-- |
-- |
|
Gr5 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.20 |
≤ 0.05 |
≤ 0.40 |
5.5-6.75 |
3.5-4.5 |
-- |
|
Gr7 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.25 |
≤ 0.03 |
≤ 0.30 |
-- |
-- |
0.12-0.25 |
| Grade | Standard | Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) | Hardness (HV) | Common Applications |
|---|---|---|---|---|---|---|
| Gr1 | ASTM B265 | 240-370 | 170-310 | 24-30 | 120-150 | Chemical Processing |
| Gr2 | ASTM B265 | 340-410 | 275-355 | 20-30 | 150-200 | Aerospace, Medical |
| Gr5 | ASTM B265, AMS 4911 | 950-1000 | 880-920 | 15-20 | 300-350 | Aerospace, Automotive |
| Gr7 | ASTM B265 | 340-410 | 275-355 | 20-30 | 150-200 | Chemical Processing |
Expert's View: The data clearly show that different grades of titanium sheets serve different needs. For example, Gr5 with its high tensile strength is more suited for aerospace and automotive industries.
By covering all grades and their corresponding ASTM standards, this table is designed to maximize search engine exposure.
Comprehensive: This table incorporates common titanium sheet grades—Gr1, Gr2, Gr5, and Gr7—with their corresponding ASTM standards, providing a complete snapshot of what's available in the market.
